L06 X ray exposure hand switch with cradle

Page identity

L06 hand held push button switch has only one gear, the appearance of the switch is made of the same material as the button.1-speed button operation,easy to use,simple and fast,which is applicable to dental X-ray machine, bone densitometer, gastrointestinal machine, digital gastrointestinal machine and gastrointestinal X-ray machine. When used as a dental manual switch, it is directly exposed.

Key selection facts

Properties	Medical X-ray Equipments & Accessories
Brand Name	Newheek
Product Name	X-ray exposure hand switch
Model Number	L06 x ray exposure hand switch with cradle
Place of Origin	Shandong, China (Mainland)
Application	x ray machine
Function	One step to control dental x ray expose
LED	No
Current	3A
Housing materials	ABS plastic
Operation voltage	125v
Standard core	2 core
Standard Length	6m wire (60cm spring coil wire)
Mechanical life	≤200,000 times
Electrical life	≤400,000 times
Structure	omron inner switch
Customization	Available

Applications

Applicable to x-ray exposure of radiography or fluoroscopy equipment

X ray hand exposure hand switch is mainly used on portable x ray, mobile x ray, stationary x ray,analog x ray,digital x ray,radigraphy x ray etc x ray equipment.

As well as it is applicable to beauty laser device, healthy recovery device etc field.

Design highlights

The button is the same material as the shell.

The key design follows the classic Omron switch design, which greatly prolongs the service life of the manual switch.

Small and beautiful, easy to operate.

Quiet design, especially low operating sound.

Sealed design, sweat does not affect the service life of internal parts.

Galvanized copper coil is easy to weld and not easy to oxidize.

Design of spring bar trigger.

Streamline design outlook, comfortable handle.

Housing adopt ABC engineering plastic, anti-shock and fire retardant.

Inner adopt OMRON micro switch, high sensitivity.

Mechanical life ≤200,000 times.

Electrical life ≤400,000 times.

Detail diagram

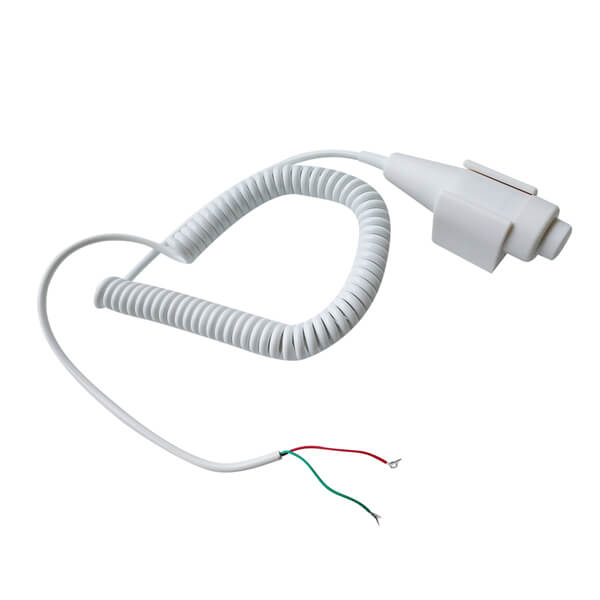

Picture of L06 X ray exposure hand switch with cradle switch

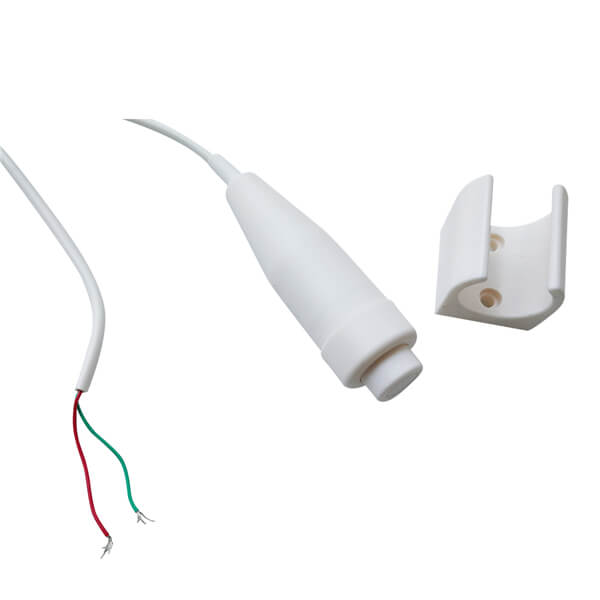

Picture of L06 X ray exposure hand switch with cradle handle and cradle

Picture of L06 X ray exposure hand switch with cradle button

Picture of L06 X ray exposure hand switch with cradle cradle

Technical features and configuration

Technical Features: L06 X ray exposure hand switch with cradle

Configuration: L06 X ray exposure hand switch with cradle

Our service

Original manufacturer of x-ray machine accessories hand switch and foot switch for more than 16 years.

√ Customers could find all kinds of x-ray machine parts here.

√ Offer on line technological support.

√ Promise super product quality with best price and service.

√ Support the third part inspection before delivery.

√ Ensure the shortest delivery time.

Contact for review

Contact us, if you need to order the L06 X ray exposure hand switch with cradle

FAQ

The common problems on L06 X ray exposure hand switch with cradle

1. Can you accept customize hand switch?

Yes. Pls feel free to send us your detail requirement by email here. You will get our reply in 24 hours.

2. Can we print our logo/website/company name on products?

Yes, please advise the size and Pantone Code of the logo.

3. What’s the lead time for regular order?

3-5 days for order quantity lower than 100pc hand switch; For more quantity, usually 15 days.

4. Can I get a discount?

Yes, for the order quantity more than 50 pcs hand switch, please contact us to get the best price.

5. What is the quality warranty?

We offer 12 months warranty after the hand switch is delivered.

Documentation

Download PDF: Newheek x ray exposure hand switch L06

Certificates

Certificate EMC

Certificate ROHS
