X ray hand switch L03 4c4m match with Siemens x ray equipment

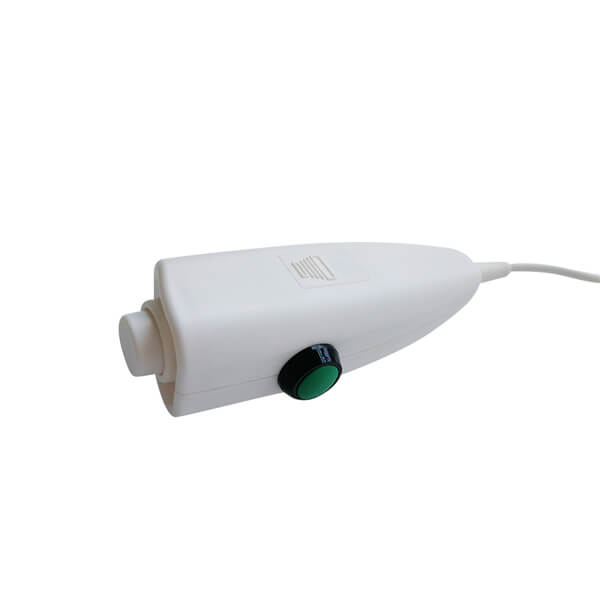

hand switch L03 4c4m rj connector

Quick Details

Properties: Medical X-ray Equipments & Accessories
Brand Name: Newheek
Model Number: L03 4c4m
Product Name: X-ray exposure hand switch
Place of Origin:  Shandong, China (Mainland)
Type:  3 function switch
       Step1 control exposure ready status, Step2 control exposure, Setp3 controls collimator
Operation voltage: 220VAC
Housing material:ABC plastic
Standard:4 core or 6 core
Length:4m, 6m, 10m
Application:x ray equipment
Structure:omron switch
Mechanical life:50,000,000
Electric life:300,000 times
Customization: Available


Product Application

Applicable to x-ray exposure of radiography or fluoroscopy equipment

X ray hand exposure hand switch is mainly used on portable x ray,mobile x ray,stationary x ray,analog x ray,digital x ray, radiography x ray etc x ray equipment.
Especially it can match with Siemens or GE x ray equipment.
As well as it is applicable to beauty laser device, healthy recovery device etc field.


Streamline design outlook, comfortable handle.
Housing adopt ABC engineering plastic, anti-shock and fire retardant.
Three steps design, 4-core or 6-core wire can be chosen freely.
Inner adopt OMRON micro switch, high sensitivity.
Mechanical life of 50 ,000,000 times above.
Electrical life of 300,000 times above.


Detail diagram

detachable hand switch three position pre and expose
Picture of   X ray hand switch L03 4c4m match with Siemens x ray equipment

three x-ray buttons
Picture of   X ray hand switch L03 4c4m match with Siemens x ray equipment  handle

bucky cassette trays handheld switch
Picture of X ray hand switch L03 4c4m match with Siemens x ray equipment  wire length
4m wire (40cm spring coil wire)


L03 Hand Switch Connection Method
 L03  4-Core

  • Step1 (Prepare Status): red and white wire
  • Step2 (Exposure Status): black and white wire
  • Step3 (Collimator Control): green wire


Configuration:      X ray hand switch L03 4c4m match with Siemens x ray equipment
electronic switches


Our Service

Original manufacturer of x- ray machine accessories hand switch and foot switch for more than 16 years.

√ Customers could find all kinds of x-ray machine parts here.

√ Offer on line technological support.

√ Promise super product quality with best price and service.

√ Support the third part inspection before delivery.

√ Ensure the shortest delivery time.


Contact us , if you want to order the X ray hand switch L03 4c4m match with Siemens x ray equipment

Email : info@xrayswitch.com

Hot Line: +86 536 8882360


The common problems on the X ray hand switch L03 4c4m match with Siemens x ray equipment


  1. Can you accept customize hand switch?

Yes. Pls feel free to send us your detail requirement by email here. You will get our reply in 24 hours.

  1. Can we print our logo/website/company name on products?

Yes, please advise the size and Pantone Code of the logo.

  1. What’s the lead time for regular order?

3-5 days for order quantity lower than 100pc hand switch; For more quantity, usually 15 days.

  1. Can I get a discount?

Yes, for the order quantity more than 50 pcs hand switch, please contact us to get the best price.

  1. What is the quality warranty?

We offer 12 months warranty after the hand switch is delivered.

Download PDF :   Newheek x ray exposure hand switch L03
